Drop-In Drop-in refrigerated well, static (4 GN container capacity) with A overshelf (COD 341179)
Where to buy
Drop-in Cold Well

Drop-In
Drop-in refrigerated well, static (4 GN container capacity) with A overshelf

COD 341179

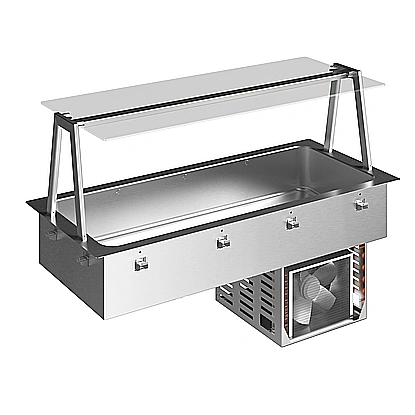

Drop-in Refrigerated Well, static (4 GN container capacity) with one A type overshelf and LED light

Specifications

  • Supply voltage: 220-240 V/1N ph/50 Hz

    Electrical power max.: 0.54 kW

  • Water drain outlet size:

  • External dimensions, Width: 1420 mm

    External dimensions, Depth: 620 mm

    External dimensions, Height: 999 mm

    Net weight: 78.7 kg

    Shipping weight: 109 kg

    Shipping height: 1190 mm

    Shipping width: 670 mm

    Shipping depth: 1470 mm

    Shipping volume: 1.17 m³

    Set temperature: -15 / 0 °C

  • Noise level: 56 dBA

  • Refrigerant type: R290

Product Features

Main Features

Designed to be positioned in flush installation providing improved cleanability and suitable for modern design installations.
CB and CE certifed by a third party notified body.
Designed to serve the food in gastronorm containers.
Suitable for GN 1/1 containers with a maximum height of 200 mm.
Precise temperature control and setting at 0,1°C .
As standard the product comes with digitally controlled thermostat which is in line of HACCP norms and provides visual alarm as a warning of the increasing or decreasing temperatures.
Food introduced at the correct temperature maintains its core temperature according to Afnor Standards.
Automatic defrosting guarantees evaporators clearance and efficient well cooling.
Stylish A type overshelf designed for extra increased visibility on the surface for charming food display.
Overshelf equipped with LED lights.

Sustainability

Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3) - CFC and HCFC free.
High-density expanded polyurethane foam with cyclopenthane guarantees excellent well insulation to reduce energy dispersion.

Construction

Well bottom is inclined to facilitate water drainage.
Well in 304 AISI stainless steel with rounded corners to facilitate cleaning operations. The well is also equipped with a drain hole.
Electronic control with temperature display.
IPx2 water protection.
The bottom is equipped with copper tubes to ensure proper cooling, with this system the air touches the cold surface and gets cooled.
Overshelf in complete AISI 304.
