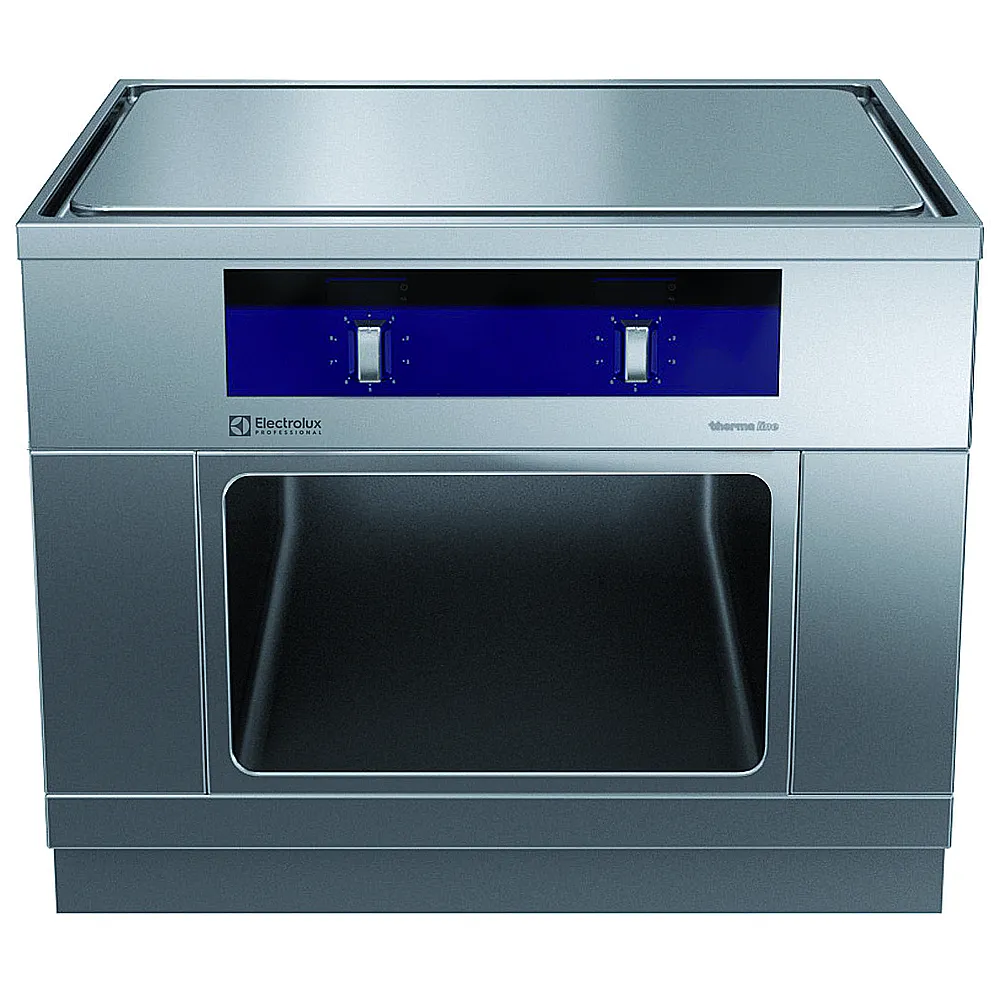

Modular Cooking Range Line thermaline 90 - 4 Zone Freestanding Electric Solid Top, 2 Sides, H=700 - H3 -Marine (COD 589879)
Where to buy
Electric Solid Tops - 4 Zone - Freestanding Units

Modular Cooking Range Line
thermaline 90 - 4 Zone Freestanding Electric Solid Top, 2 Sides, H=700 - H3 -Marine

COD 589879

Electric Solid Top, 4 zones, two-side operated - H3 - Marine

Specifications

  • Supply voltage: 440 V/3 ph/50/60 Hz

    Electrical power max.: 16 kW

  • Current consumption: 26 Amps

  • Configuration: On Base;Two-Side Operated

    Front Plates Power: 4 - 4 kW

    Back Plates Power: 4 - 4 kW

    Solid top usable surface (width): 820 mm

    Solid top usable surface (depth): 720 mm

    Working Temperature MIN: 100 °C

    Working Temperature MAX: 450 °C

    External dimensions, Width: 1000 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 700 mm

    Storage Cavity Dimensions (width): 680 mm

    Storage Cavity Dimensions (height): 330 mm

    Storage Cavity Dimensions (depth): 740 mm

    Net weight: 193 kg

Product Features

Main Features

Rapid heat up of the plate and continuously ready for use.
Overheat protection: a temperature sensor switches off the supply in case of overheating.
Pans can easily be moved from one area to another without lifting.
Solid top cooking surface made of 20 mm thick steel, DIN 1.7335, smooth pore-free and easy to clean.
Wide rounded cleaning zone around the plates for easier cleaning.
4 heating zones independently controlled.
All major components may be easily accessed from the front.
8 power levels.
Two electronic sensors per zone to control surface temperature and to protect cooking plate from overheating.
THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.
Cooking plate and base joint profile guarantee against soil infiltration.
Metal knobs with embedded hygienic silicon "soft" grip for easier handling and cleaning. The special design of the controls prevent infiltration of liquids or soil into vital components.
Large visible digital display manufactured in tempered glass to resist heat and chemicals, showing temperatures or power settings. The display also shows on/off status of the appliance and on/off status of the heating elements.

Sustainability

Standby function for energy saving and fast recovery of maximum power.

Construction

Internal frame for heavy duty sturdiness in stainless steel.
Flat surface construction with minimal hidden areas to easily clean all surfaces
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth.
2 mm top in 1.4301 (AISI 304).
IPX5 water resistance certification.
