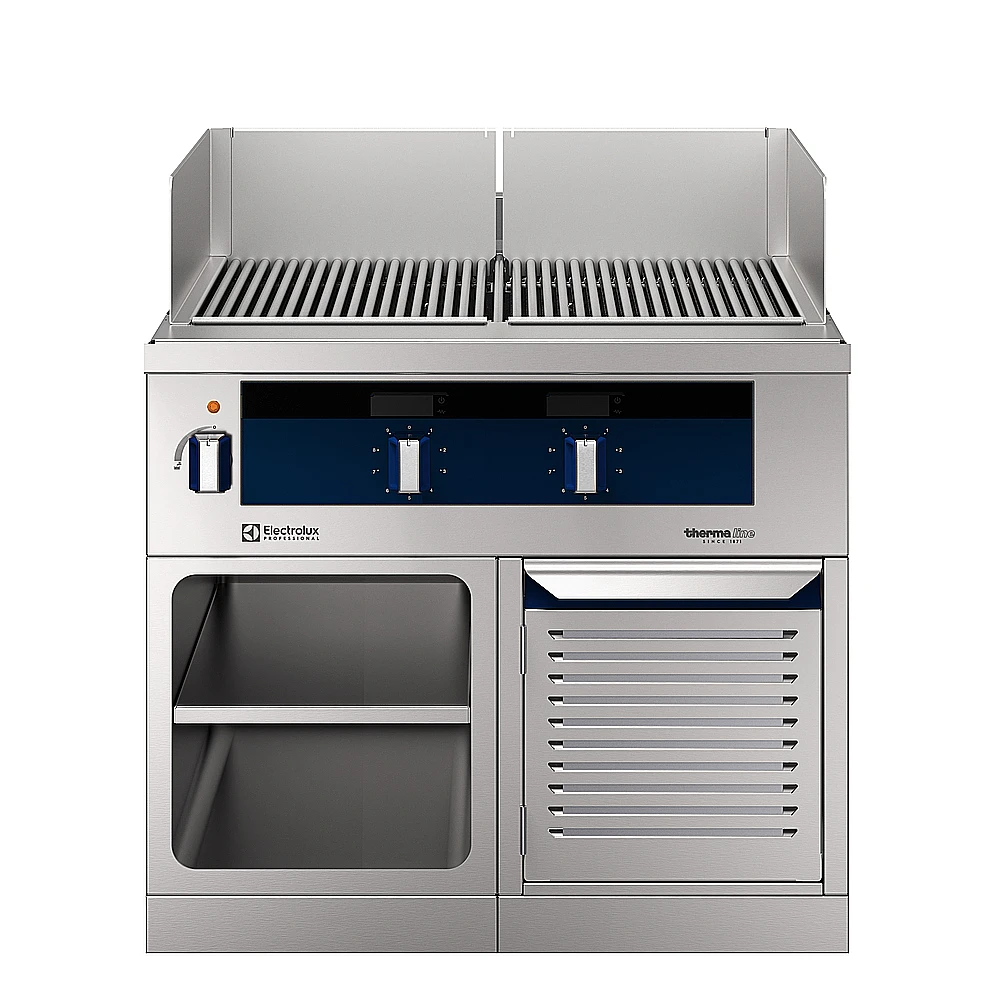

Modular Cooking Range Line thermaline 90 - Full Module Electric Chargrill, 1 Side (589834)

Product Features

Main Features

Special system utilizing stainless steel heat spreading shields below the radiants (PATENT US9591947B2 and related family) avoiding burner clogging and minimizing flare ups while providing an even heat distribution throughout the cooking surface.

Stainless steel high splash guards on the rear and sides of cooking surface.

All major components may be easily accessed from the front.

THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.

Metal knobs with embedded hygienic silicon "soft" grip for easier handling and cleaning. The special design of the controls prevent infiltration of liquids or soil into vital components.

Burners are protected by 1.4509 (AISI 441) stainless steel deflective trays avoiding flare-ups and providing even heat distribution.

Full-length grease collection drawer with filling indicator, to collect residual cooking grease, and handle to facilitate manipulations.

Cooking grids made in highly resistant enameled cast iron for easy cleaning.

Construction

IPx4 water protection.

2 mm top in 1.4301 (AISI 304).

Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth.

Flat surface construction with minimal hidden areas to easily clean all surfaces

Internal frame for heavy duty sturdiness in 1.4301 (AISI 304).

Unit constructed according to DIN 18860_2 with 20 mm drop nose top.
