ecostore HPe 1 Door Digital Freezer, 670lt (-22/-15), AISI 304 - R290 - Class B (COD 725459)

Compare Where to buy

ecostore HPe 670 liters Digital Freezers (R290)

ecostore HPe
1 Door Digital Freezer, 670lt (-22/-15), AISI 304 - R290 - Class B

COD 725459

1-door Freezer 670lt, -22-15°C, digital, AISI 304, R290, Class B

Fast range available in stock. (click to discover more)

Suggested green version.

Compare

Where to buy

Green benefits

Energy savings: Reduce your electricity bill up to 67%
* with Electrolux Professional ecostore Premium HPe (Class B).
Storage capacity: Offers 50L more space than market equivalents with durable AISI 304 stainless steel construction.

*Calculated on a 503lt (net volume) full·door freezer cabinet, replacing a class G appliance with a class B.

Specifications

Capacity

Number and type of grids (included): 3 - GN 2/1
ISO Certificates

ISO Standards: ISO 9001; ISO 14001; ISO 45001; ISO 50001
Electric

Supply voltage: 220-240 V/1 ph/50 Hz

Electrical power, max: 0.44 kW
Key Information

Net Volume: 503 lt

N° of doors: 1

Door hinges:

External dimensions, Width: 740 mm

External dimensions, Depth: 860 mm

External dimensions, Depth with Doors Open: 1480 mm

External dimensions, Height: 2080 mm

Type of external material: 304 AISI

Type of internal material: 304 AISI

Internal panels material: 304 AISI

Number of positions & pitch: 44; 30 mm

Gross capacity: 670 lt
Refrigeration Data

Control type: Digital

Refrigeration power at evaporation temperature: -30 °C

Operating temperature min.: -22 °C

Operating temperature max.: -15 °C

Compressor power: 1 hp

Operating mode: Ventilated

Cooling unit: Built-In

Defrost type: Electric
Sustainability

Refrigerant type: R290

GWP Index: 3

Refrigeration power: 322 W

Refrigerant weight (unit 1): 90 g

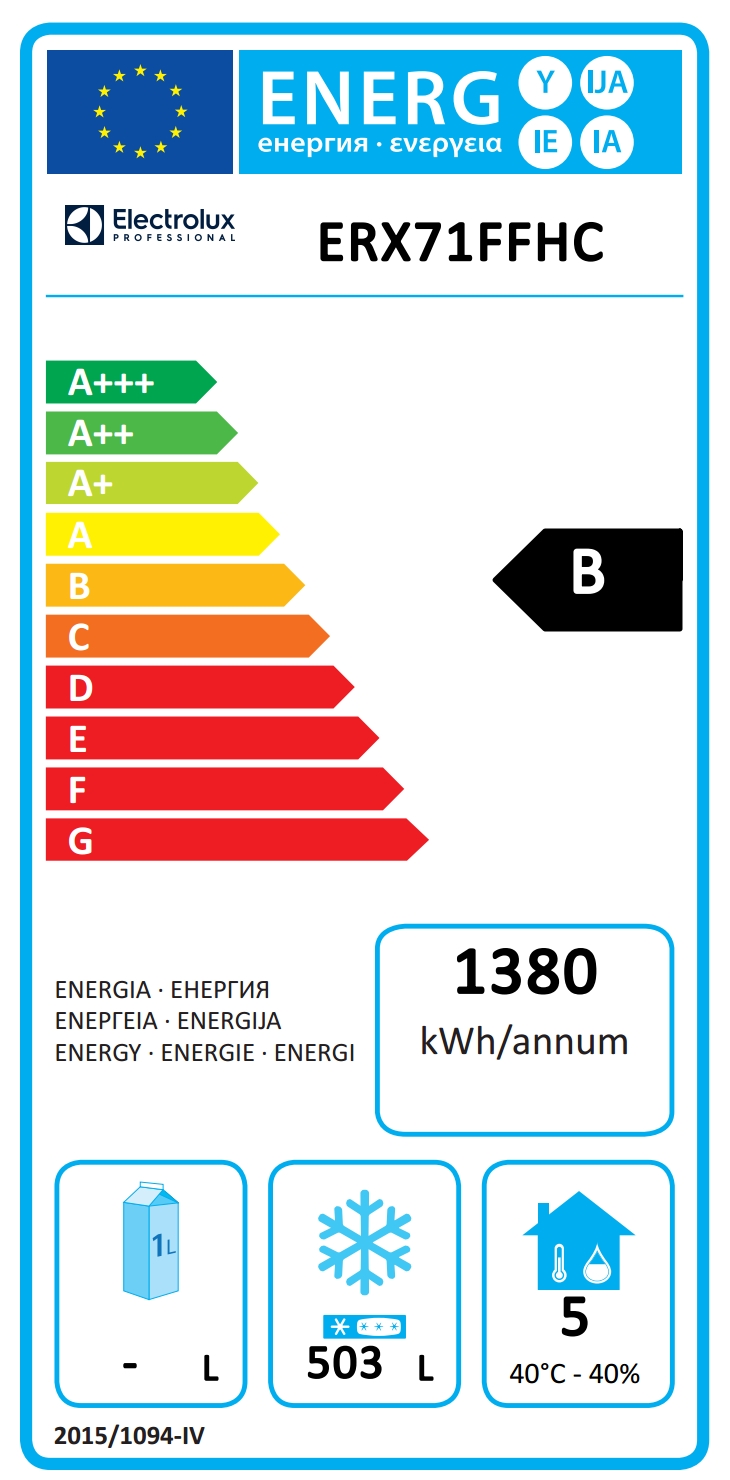

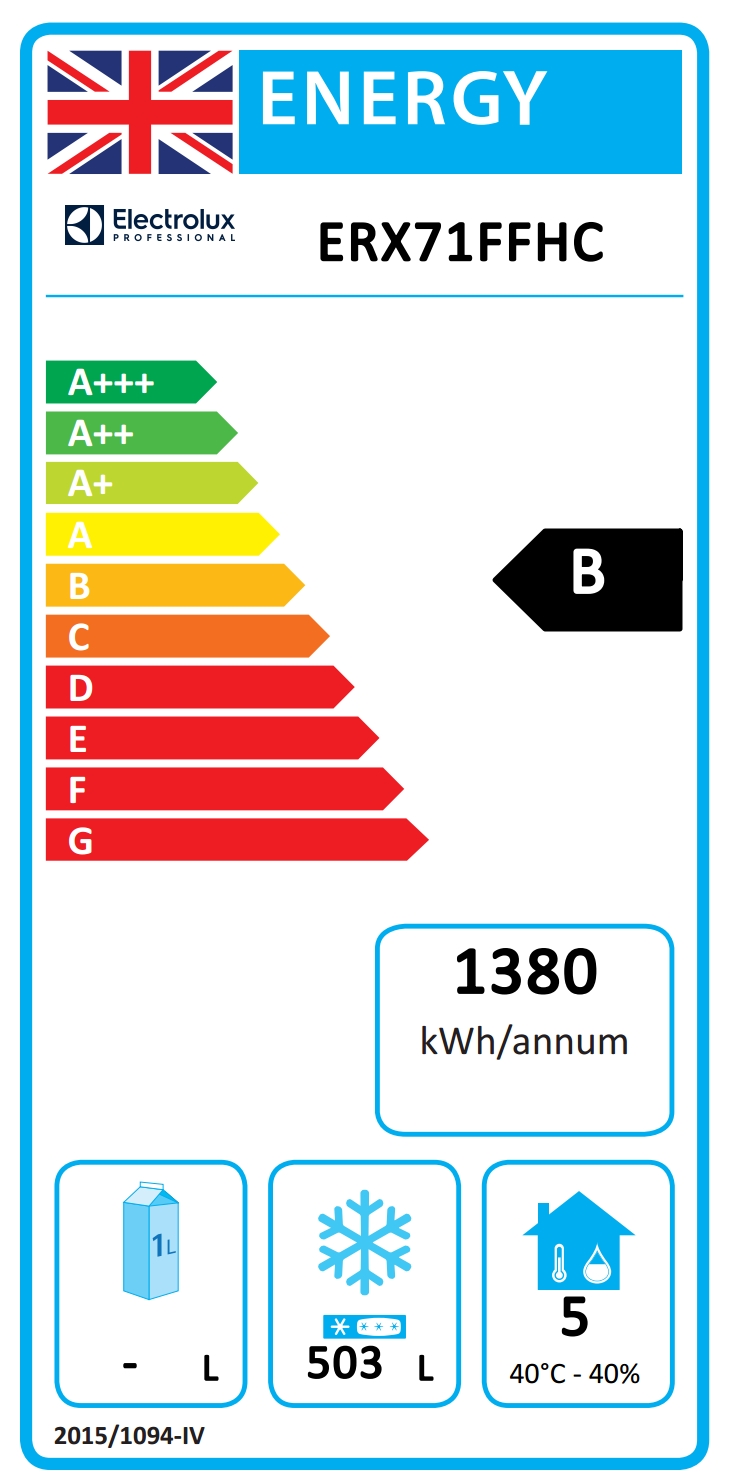

Energy Class (EU Reg. 2015/1094): B

Yearly and daily energy consumption (EU Reg. 2015/1094): 1380kWh/year - 4kWh/24h

Climate class (EU Reg. 2015/1094): Heavy Duty (5)

Energy Efficiency Index-EEI (EU Reg. 2015/1094): 34.92

Documents

Product Features

Main Features

Hidden evaporator thus guaranteeing higher storage capacity and less corrosion problems.

Internal structure with numerous charging positions available to host grids, ensuring higher net capacity and a greater storage space.

60 mm-thick insulation covering the evaporator can be easily removed with a single operation.

Optimized back to front forced air flow provide even temperature distribution and fast cooling in any conditions.

Tropicalized unit.

Large storage area suitable to contain 2/1 GN grids or shelves on anti-tilt runners.

Automatic defrost.

Equipped with single phase electrical cable and Schuko plug for easy and fast installation.

Freezer model has operating temperatures that can be adjusted from -22 to -15 °C.

Right hinged full door.

Sustainability

Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).

Automatic evaporation of the defrosting water by hot gas on the top for energy saving.

Door switch stops the fan when door is opened to avoid cold air exiting the cell, thus saving energy.

Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.

CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.

User Interface & Data Management

Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.

Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).

Easy serviceability thanks to the intuitive control panel with access via app.

Large digital white-digit display with cabinet temperature display and setting, activation of turbo frost cycle (to rapidly cool warm loads) and possibility to activate manually the defrost cycle.

Construction

Easy access to the main components for maintenance.

Stainless steel runners and supports easily disassembled.

Constructed from the highest quality AISI 304 Stainless steel.

Anti-corrosion bottom material avoids any damage that may be caused to the cabinet by aggressive detergents employed to clean the floors.

Doors are self-closing and can be fully opened up to 180°.

Lockable door.

The rounded internal corners, the easily removable runners and grids allow for ease of cleaning and high hygiene standards.

Mounted on adjustable Stainless steel feet, with castors as an option.

Included Accessories


Quantity

Code

Description

Quantity: 3

Code: 881020

2/1GN grey rilsan grid with 2 runners
